Change Ubuntu Login Colours

Edit the css file (as root):

gedit /etc/alternatives/gdm3.css

find #lockDialogGroup

Default is:

#lockDialogGroup {
background: #2c001e url(resource:///org/gnome/shell/theme/noise-texture.png);
background-repeat: repeat; }

Save and reboot

Screenshot from 2018-11-13 13-41-49.png

Posted in Uncategorized

Archive Unicode Correction

In Ubuntu Linux, to unzip a Japanese archive without having scrambled, odd filenames, correct the Unicode on unzip by entering the following line in terminal.

unzip -O cp932 <filename>

When unzipped using the GUI:

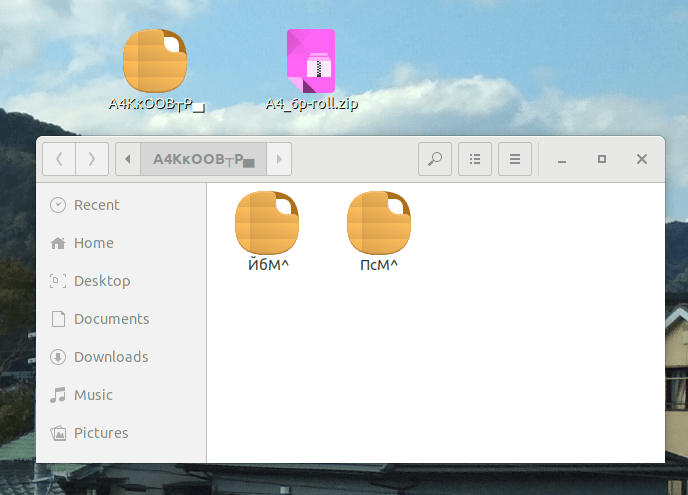

Screenshot from 2018-11-12 12-14-21.png

The same file unzipped by navigating to the Desktop folder in terminal and running

unzip -O cp932 A4_6p-roll.zip

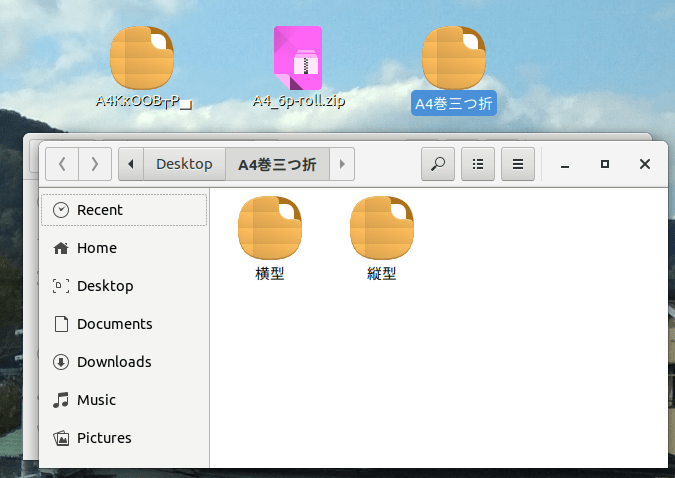

Screenshot from 2018-11-12 12-15-16.pngScreenshot from 2018-11-12 12-15-21.png

Posted in Uncategorized

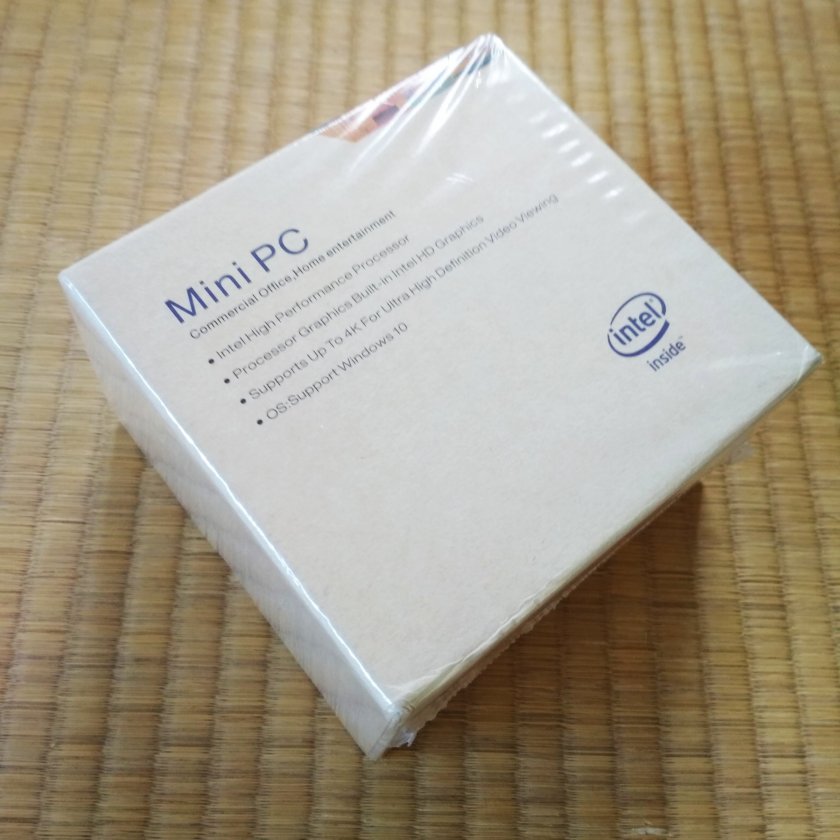

Z83II Mini PC

The Z83II Mini PC has an Intel Atom x5-Z8300, 2gb DDR3 and a 32gb emmc, and ships with Windows 10 preinstalled.

Bios

Hit the delete key on boot to enter the bios. Here are screenshots of the options available in the bios:

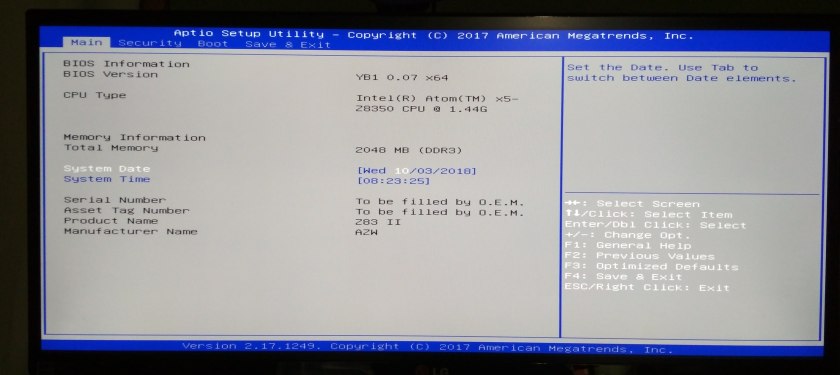

Z83II Intel Mini PC Bios 1

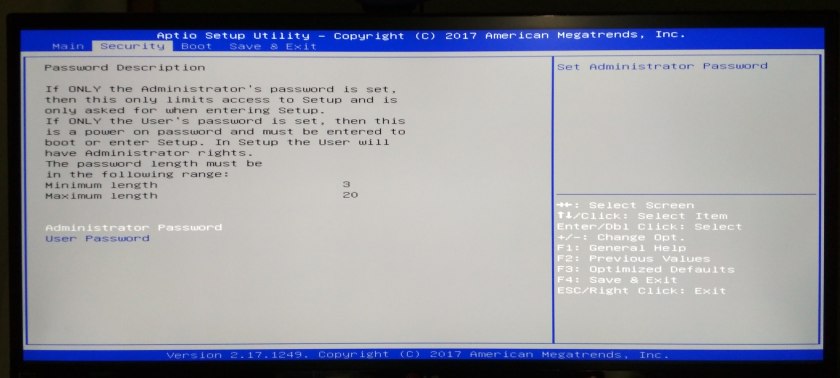

IMG_20181003_172337

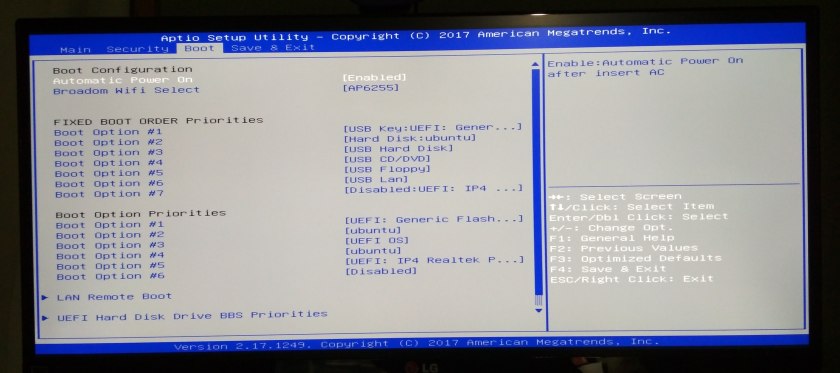

IMG_20181003_172345

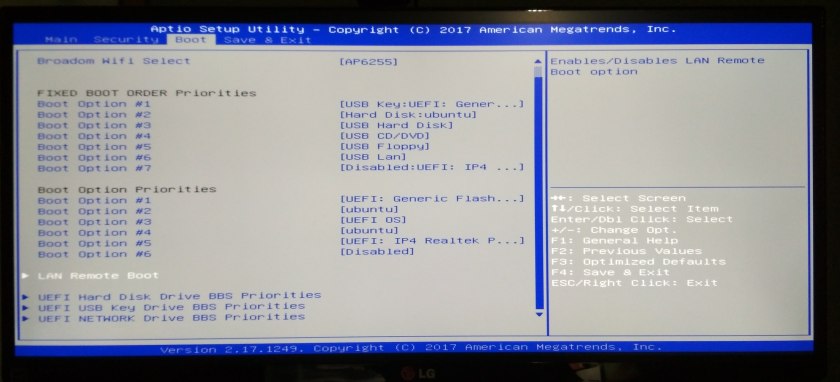

Z83II Intel Mini PC Bios 2

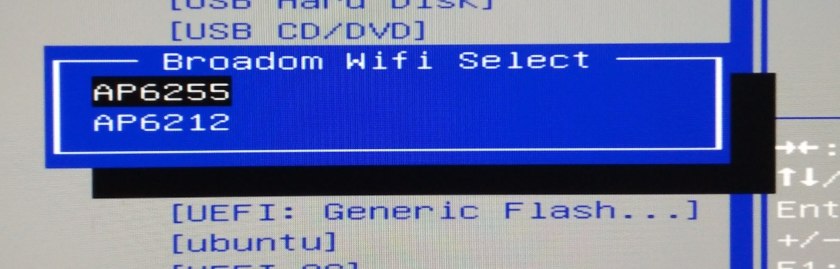

Z83II Intel Mini PC Bios Wifi Selection

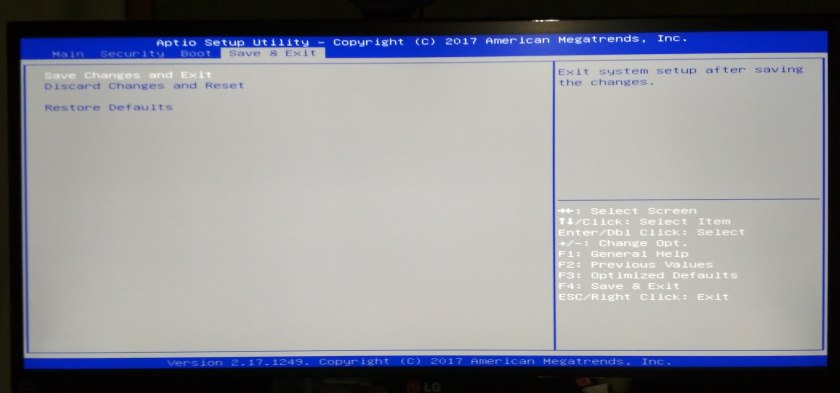

IMG_20181003_172355

Linux

Ubuntu 18.04 runs well enough. Sound and wifi do not seem to work out of the box, but I’m sure there are drivers available.

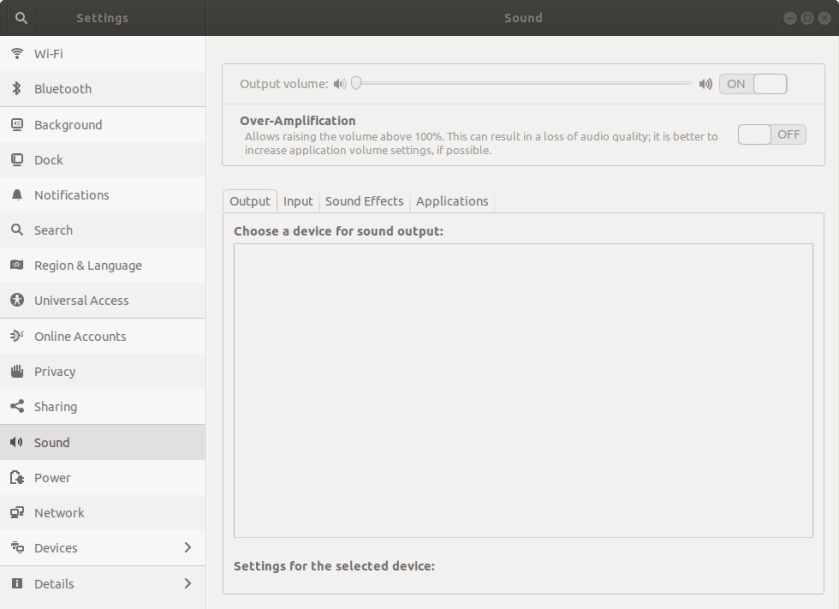

Screenshot from 2018-10-03 12-23-53.png

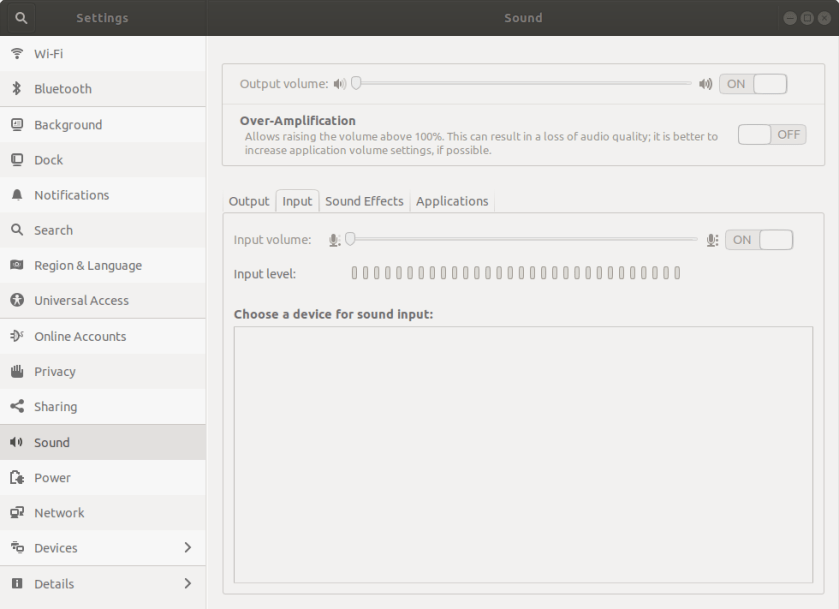

Screenshot from 2018-10-03 12-24-13.png

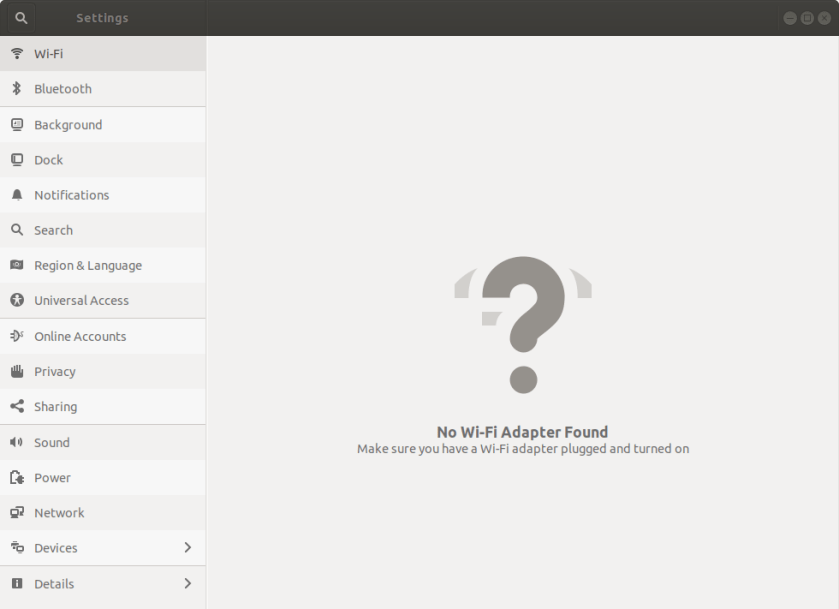

Screenshot from 2018-10-03 12-24-30.png

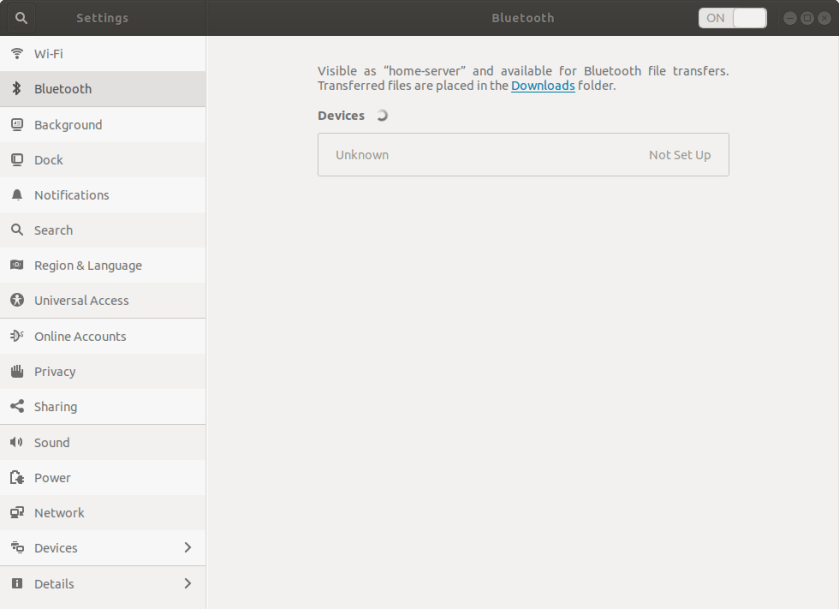

Screenshot from 2018-10-03 12-25-05.png

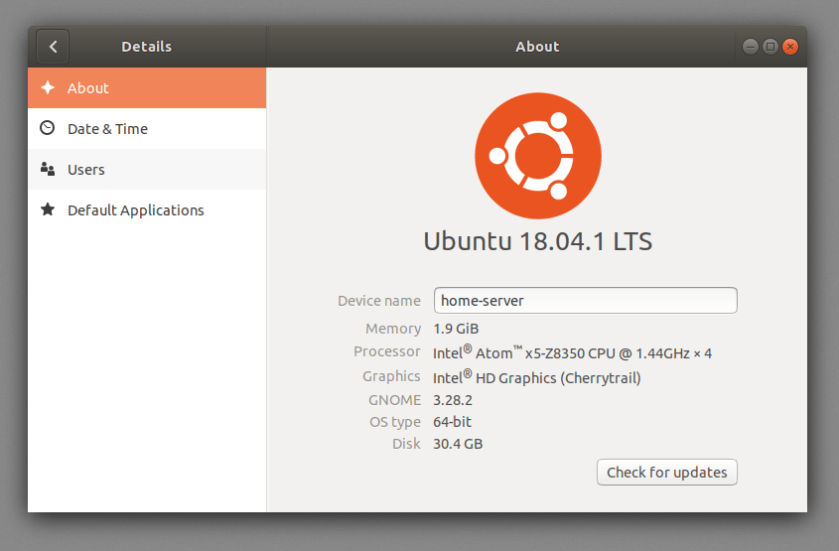

Screenshot from 2018-11-11 09-47-30.png

Android

I tested Android-x86 by downloading the latest image from their site, and creating a bootable USB drive using UNetbootin. I plugged the usb drive into the z83ii and booted it up, changed the boot priority to load the USB drive first. Upon saving and exiting the bios, I was met with this grub-like boot selector:

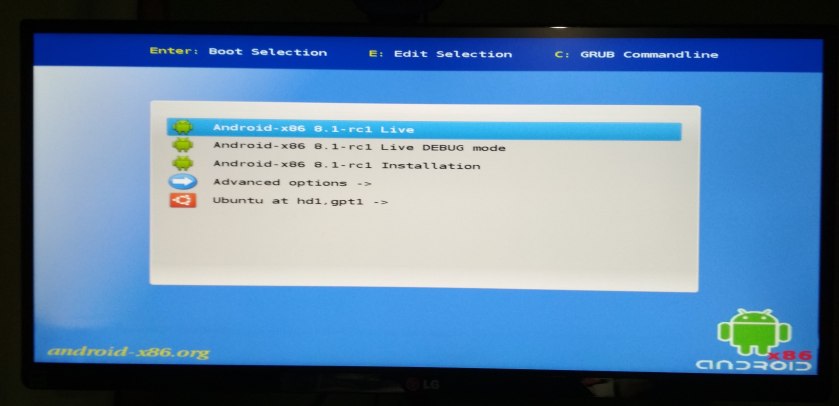

z83ii Android-x86 boot selection

The system booted easily and everything except the WiFi worked out of the box. I did not try changing the WiFi model in the bios or installing any drivers. The animations were pretty choppy, but it was very usable.

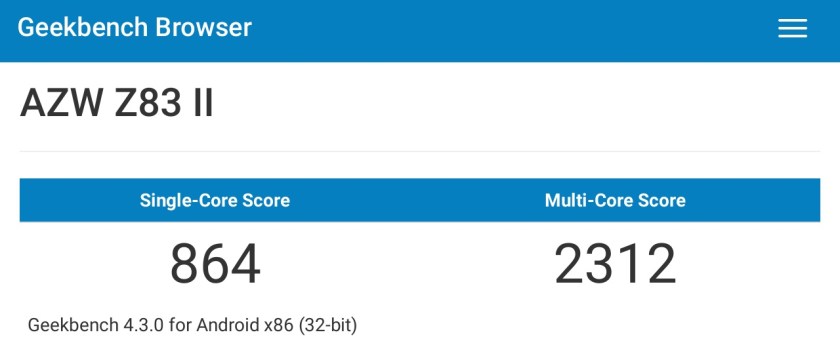

I signed into the Play Store and downloaded Geekbench. The benchmark results left a lot to be desired, as you can see here.
